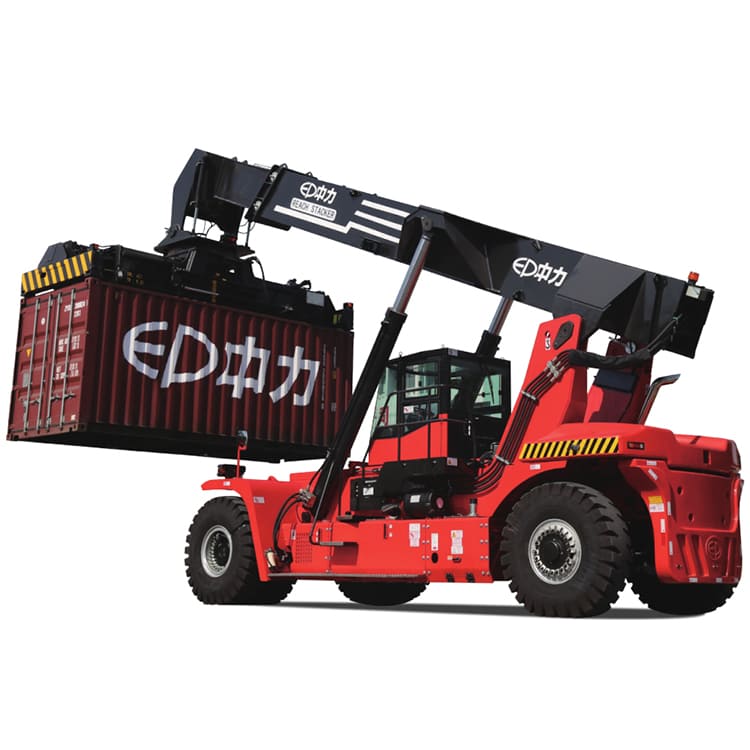

EP China High Reach Stacker 45 Ton

EP China High Reach Stacker 45 Ton

Using world brand transmission like KESSLER, CUMMINS and DANA, which are safe, reliable and strong power. Combing the specific electronic control technology, the equipment is greatly optimized in dynamic performance. with over-load protection system, gearbox will switch to low speed mode automatically when over- loaded, to avoid shock and impac-ting, and also extend service life of engine and gearbox.

EP China High Reach Stacker for Sale in Benin

EP China High Reach Stacker for Sale in Benin

EP China High Reach Stacker for Sale in Benin

EP China High Reach Stacker for Sale in Benin

EP China High Reach Stacker 45 Ton Specification:

Manufacturer: EP

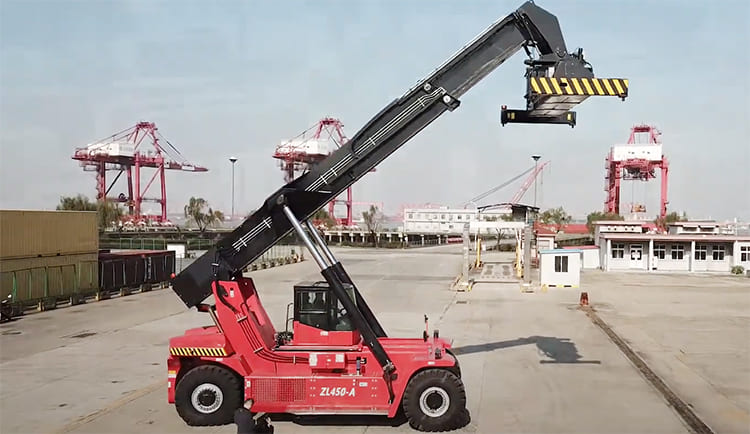

Model : designation ZL450-Atype45t(standard) ZL450type45t

Operator type: Seated type

load capacity at load centre distance c1 Q (t): 45

load capacity at load centre distance c2 Q (t): 31

load capacity at load centre distance c3 Q (t): 15

Wheelbase y (mm): 6000

 Service weight kg:  72000

Tyre type: rubber

Tyre size: front 1670X515

Tyre size: rear 1670X515

Wheels, number front/ rear (x=drive wheels): 4

 Height, mast lowered h (mm): 4660

Engine manufacturer: VOLVO CUMMINS

Engine power according to ISO : 1585 kW 265 179

Rated speed min: 2200

Number of cylinders/displacement (‒)/(cm3): 6

Vehicle electrical system: voltage V 24

Size of containers feet (´):' 20' 40'

7.4 Side thrust mm ±800 ±800

Tilt ° :±4

Hydraulic oil tank capacity ℓ : 800

Fuel tank capacity ℓ : 750
