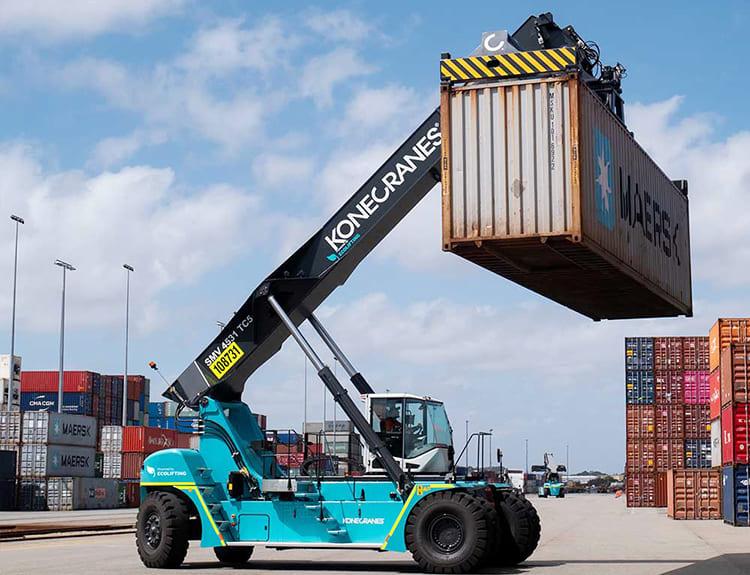

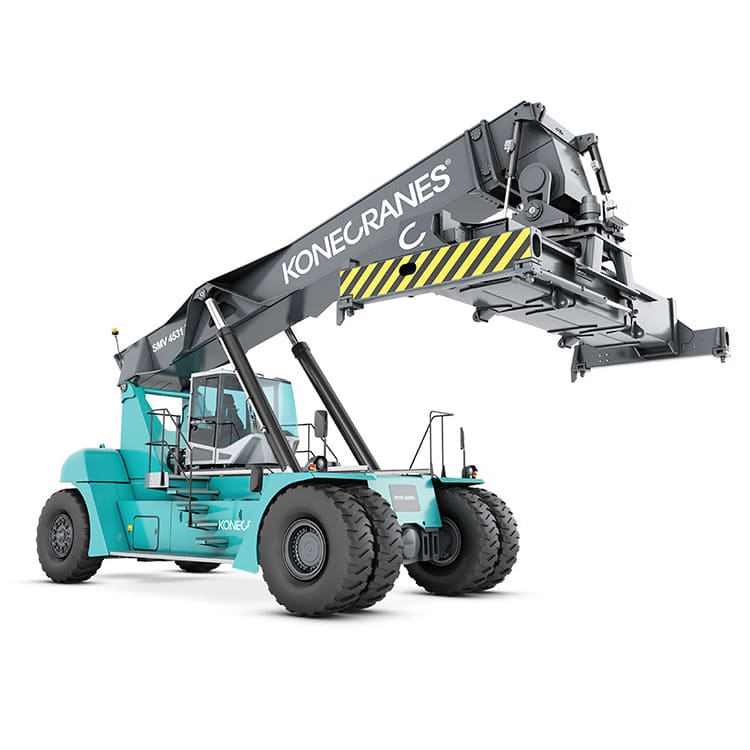

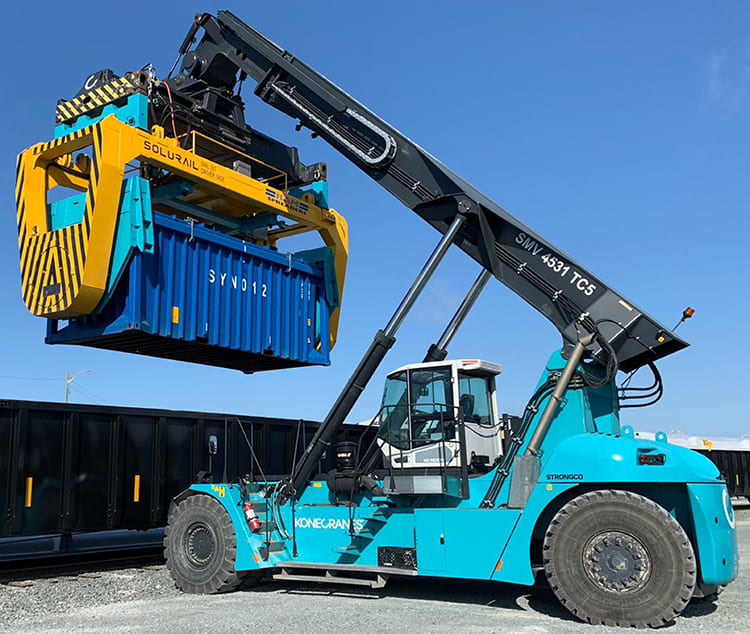

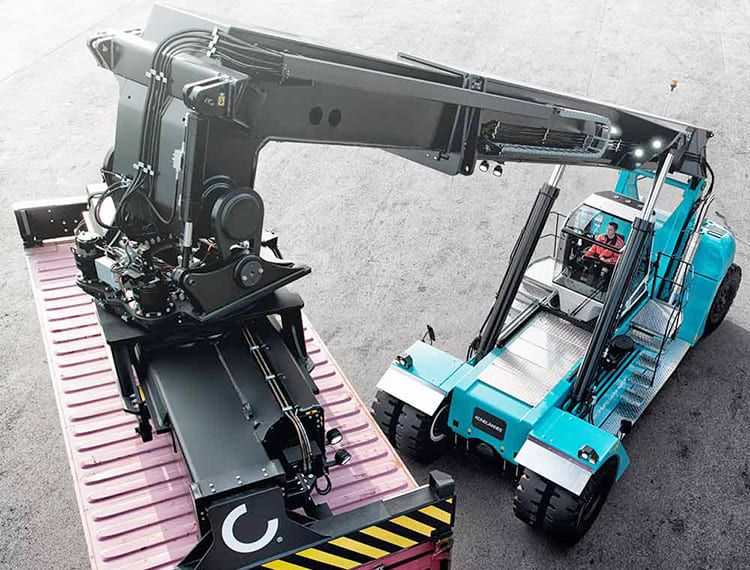

Konecranes SMV4531 TC5 reach stacker - the ultimate solution for all your heavy lifting needs! With its impressive lifting capacity of up to 45 tonnes, this reach stacker is built to handle even the heaviest loads with ease.
Equipped with advanced features such as an innovative hydraulic system and a spacious operator cabin, the Konecranes SMV4531 TC5 reach stacker delivers unparalleled performance and efficiency. Its unique design allows for efficient stacking and loading of containers, making it the ideal choice for ports, terminals, and warehouses.
The Konecranes SMV4531 TC5 reach stacker also boasts exceptional maneuverability, thanks to its compact size and superior control system. This means you can easily navigate tight spaces and work efficiently even in crowded environments.
Kone Crane Reach Stacker | Konecranes SMV4531 TC5 For Sale in Nigeria
Kone Crane Reach Stacker | Konecranes SMV4531 TC5 For Sale in Nigeria
Kone Crane Reach Stacker | Konecranes SMV4531 TC5 For Sale in Nigeria
Kone Crane Reach Stacker | Konecranes SMV4531 TC5 For Sale in Nigeria
Nominal load at COG: 45 t
Standard tyres: 4x2
Centre of gravity: 2000 mm
Transmission type: W
Max. Reach horizontal: 6.35 m
Weight: 71.8 t
Total width: 6050 mm
Construction height: 4500 mm
Lifting height: 15.3 m
Travel speed with / without load: 22/25 km/h
Turning radius: 10 m
Wheel base: 6.4 m
Engine manuf.: Volvo
Engine type: TAD1171VE
Engine power: 265 kW
Displacement: 10.84 l
Revolutions at max torque: 2100 rpm
Max. torque: 1785 Nm
No. of cylinders: 6
Emission level: IV
